Controllers for Colour Changing LED Strip

There are two models of controller and also a repeater for long runs of strip (over 70 watt of power)

The manual is the lower cost but a remote controlled version is available.  The repeater allows longer lengths of strip to be controlled.

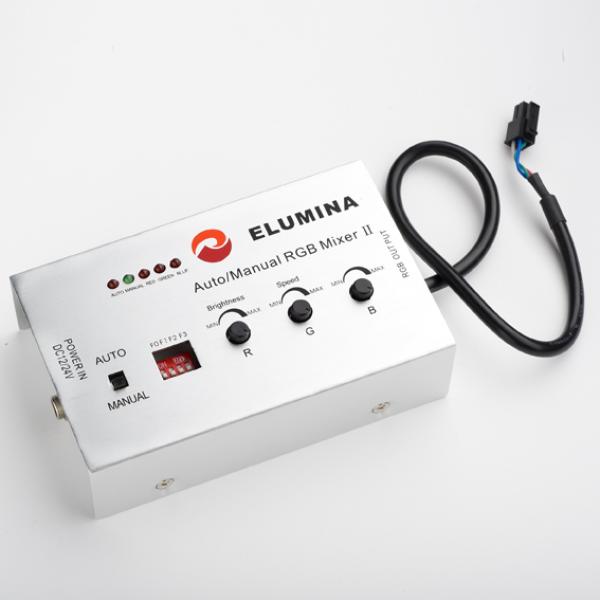

The manual model



BRIGHTLIGHT CODE: EACO-124
IP RATING: IP40 - Indoor Use Only
COLORS: RGB - 16 Million Colours
DIMENSIONS (MM): L115 x W72 x H32
VOLTAGE: 12 Volts or 24 Volts DC
OPERATING TEMP: -5 ~ 65°C
HOUSING: Aluminium Alloy Casing
RGB 7-Colour auto-run and manual light controller. 7 colour preset changing device which uses a powerful IC to control red, green and blue LED's. The RGB controller provides you with an option to auto-run and manual adjust lighting colour changes

and the Remote Control Model



BRIGHTLIGHT CODE: EACO-512
IP RATING: Indoor Use Only
COLORS: RGB - 16 Million Colours
DIMENSIONS (MM): L170 x W70 x H30
VOLTAGE: 12 Volts or 24 Volts DC
POWER CONSUMPTION: Up to 70 Watt
OPERATING TEMP: -40 ~ 50°C
HOUSING: PVC Casing
Power Output per Channel: 3 Amp per channel MAX (2 Channels)
Functions: Control via IR Remote
On/Off
Speed +/-
Brightness +/-
Fade
Pause
3 Preset colour changing sequences
DMX signal recieve mode

The RGB Repeater



BRIGHTLIGHT CODE: EACO-SGU
IP RATING: IP40 - Indoor Use Only
COLORS: RGB - 16 Million Colours
DIMENSIONS (MM): L170 x W70 x H30
VOLTAGE: 12 Volts or 24 Volts DC
POWER CONSUMPTION: Up to 120 Watt
OPERATING TEMP: -40 ~ 50°C
HOUSING: PVC Casing
Power Output per Channel: 4 Amp per output MAX (2 outputs)

manual RGB controller.jpg

Code 1432



For more informationemail or ring +64 9 475 6747
