Blind Caps

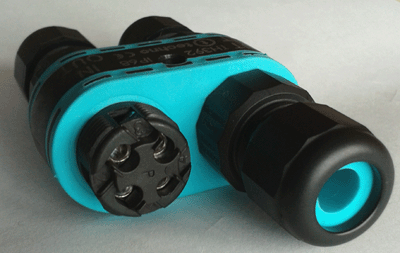

Mini Distribution Unit IP68

The weak link in outdoor lighting is the seal covering connectors, when these leak the system will fail.
The Techno waterproof joints are very high quality and when correctly installed will prevent any water ingress.  These are quick and easy to use.

The Mini Distribution Unit has one input and three outlets. Unused outlets can be sealed with a blind cap.(see options box).
The unit is suitable for 12 Volt or mains supply, it is rated 17.5 Amps 450 Volts.

Cable size : 8mm to 12mm diameter
Rating:  IP 68 to 1 Bar pressure
Size:   Length 80mm, Width 54mm, Depth 28mm


Four terminals in block each 4 pole

Top quality designed and made in Italy
