Wall Mounted Transformer

Enquire for price

The Wall Mount Transformer is an above-ground, waterproof unit providing 12 volt AC power for outdoor lighting. Wall Mount Series Transformers have a black, glass-reinforced, UV stable nylon case, Available in 100 and 200 watt versions. Option of either 12 or 13 volt secondary output to allow for voltage drop on long cable runs. The unit has thermal protection for the primary side of the transformer with fuse protection for the secondary. Hunza Wall Mount series are “Double Insulated Safety Isolating” transformers

Enquire Now

02936

Power Supplies

Description

Wall Mounted Transformer                        Hunza

  • Input 230 Volt AC  output 12 Volt AC with option of 13 Volt AV for long cable runs.
  • Sizes available 100 Watt or 200Watt
  • Rating IP66
  • Standards  AS/NZS 61046, UL 1838
  • Warranty 5 years
  • Weight 1.6kg for 100 Watts or 2.0kg for 200 Watts
  • For a no obligation quote email your requirements to sales@nzlightingltd.co.nz

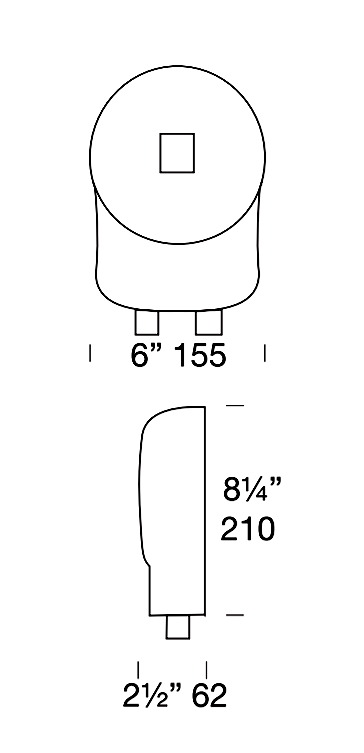

Wall-Mount-Transformer
